Ceramic Ferrule For Stud Welding

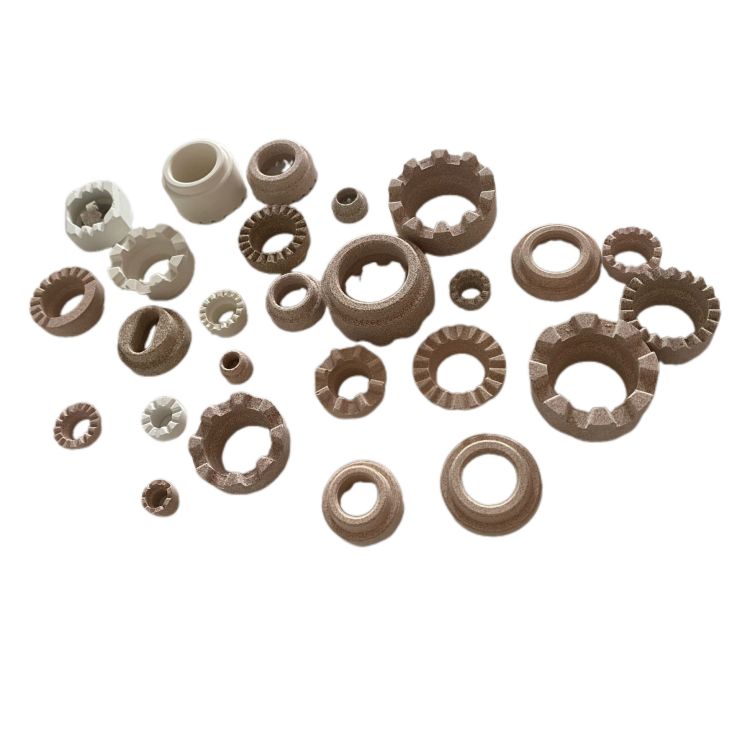

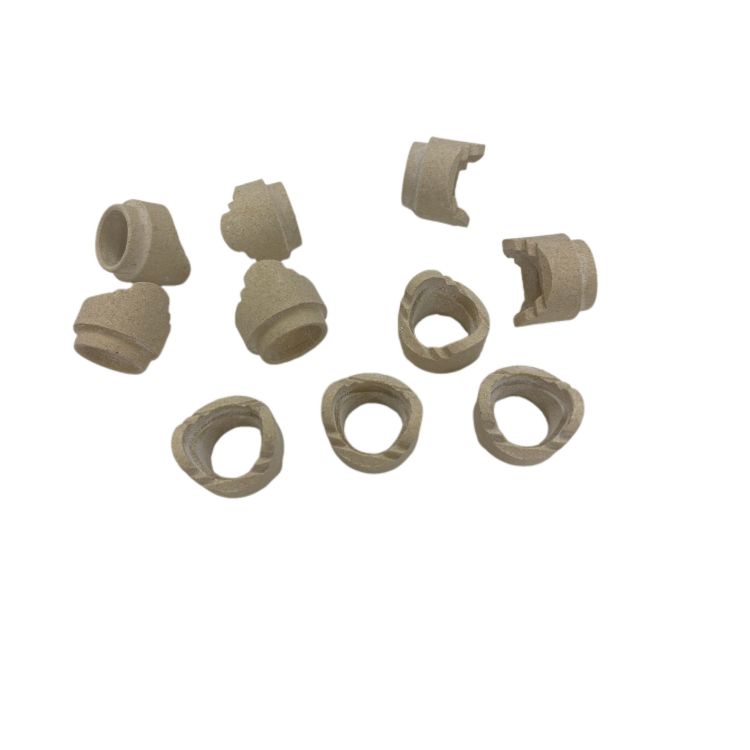

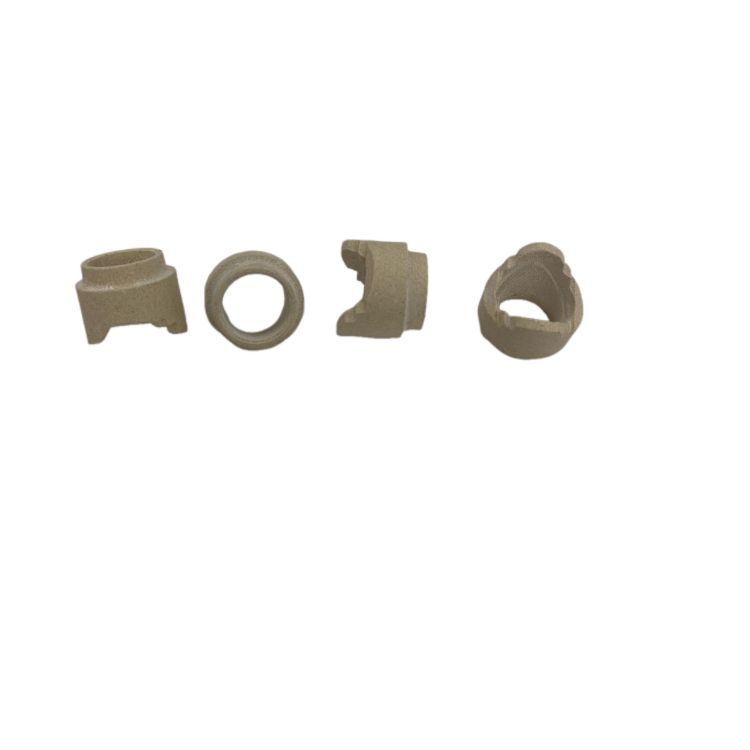

A ceramic ferrule is a small, round donut-shaped component used primarily in stud welding processes to control and focus the heat generated during welding. it is high temperature resistant，Made from heat-resistant ceramic material, the ferrule acts as a mold around the weld area, shielding it from contaminants and ensuring the molten metal stays in place until it solidifies. This improves the quality of the weld by concentrating the arc and controlling the flow of the molten material.The raw material is cordierite.Currently we can customize and produce ceramic ferrules in various sizes, if you need customized pls let us know.

Ceramic ferrules are essential in drawn arc stud welding, a common method used to attach metal fasteners (like shear studs, threaded studs, arc studs, boiler studs, refractory anchors, insulation pins etc) to a base material, usually steel. The ferrule's insulating and heat-retaining properties help create a clean and uniform weld, reducing the risk of defects like spatter, oxidation, or improper fusion.

Applications:

Ceramic ferrules are used in a variety of industrial and construction applications where stud welding is involved. Key applications include:

Construction and Steel Structures:

Widely used in shear stud welding to attach shear connectors (studs) to steel beams or plates in the construction of buildings, bridges, and other large structures. This process helps improve the shear capacity of composite structures.Currently we can customize and produce ceramic ferrules in various sizes, if you need customized pls let us know.

Shipbuilding:

Used in hull construction and other structural components to weld studs onto steel surfaces, ensuring durability and stability in marine environments.Currently we can customize and produce ceramic ferrules in various sizes, if you need customized pls let us know.

Automotive and Aerospace Industries:

Employed in the attachment of fasteners to metal surfaces where precise and strong welds are critical for safety and performance.

Boilers and Pressure Vessels:

Applied in stud welding on pressure vessels, tanks, and boilers where thick plates need to be fastened securely without compromising the structural integrity.

Power Plants:

Used in structural fastening for power generation equipment, especially in securing heavy-duty insulation pins, supports, and other metal components. Currently we can customize and produce ceramic ferrules in various sizes, if you need customized pls let us know.

Standards:

Several industry standards apply to ceramic ferrules, primarily focused on their use in stud welding processes. These standards ensure that the materials and methods used provide consistent quality and safety. Some key standards include:

AWS D1.1 – Structural Welding Code – Steel:

This standard from the American Welding Society governs stud welding and the use of ceramic ferrules in structural applications like bridges, buildings, and industrial infrastructure.

ISO 13918 – Welding – Studs and Ceramic Ferrules for Arc Stud Welding:

An international standard that specifies the dimensions, tolerances, and material properties for studs and ceramic ferrules used in drawn arc stud welding.

EN ISO 14555 – Welding – Arc Stud Welding of Metallic Materials:

A European standard that defines the procedures, materials, and ferrules used in the arc stud welding process to ensure the durability and quality of welded connections.

ANSI/AWS C5.4-93 – Recommended Practices for Stud Welding:

Provides guidelines on stud welding, including the role of ceramic ferrules, to ensure high-quality welds in various industrial applications.

Summary:

Ceramic ferrules play a critical role in stud welding, ensuring high-quality, defect-free welds by concentrating heat and protecting the weld pool. They are widely used in industries such as construction, shipbuilding, automotive, and power generation. Governed by key standards like AWS D1.1 and ISO 13918, ceramic ferrules ensure that stud welding processes meet stringent safety and performance criteria.
