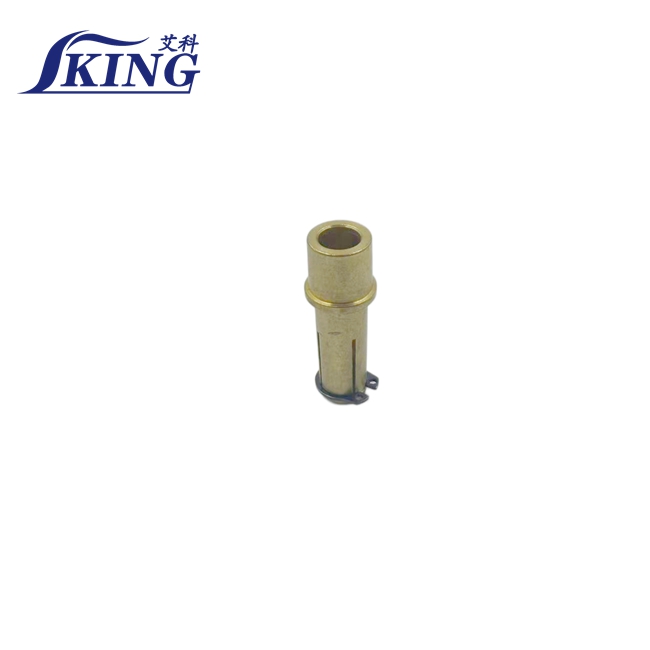

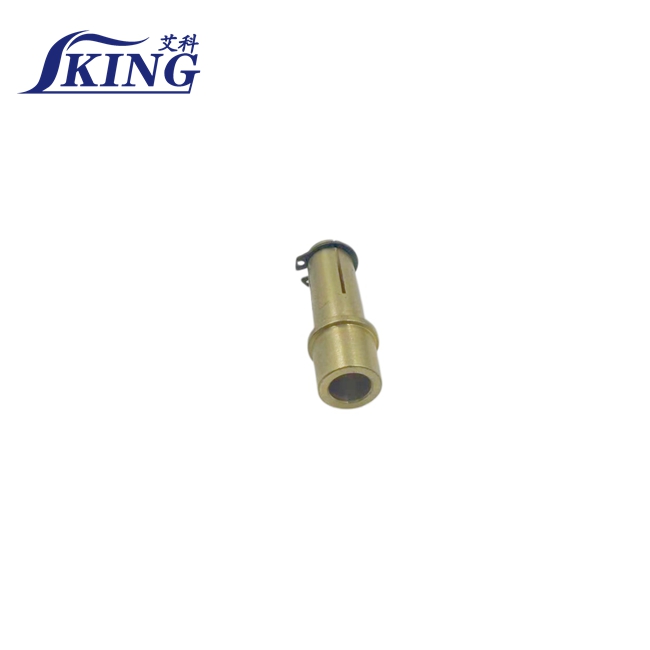

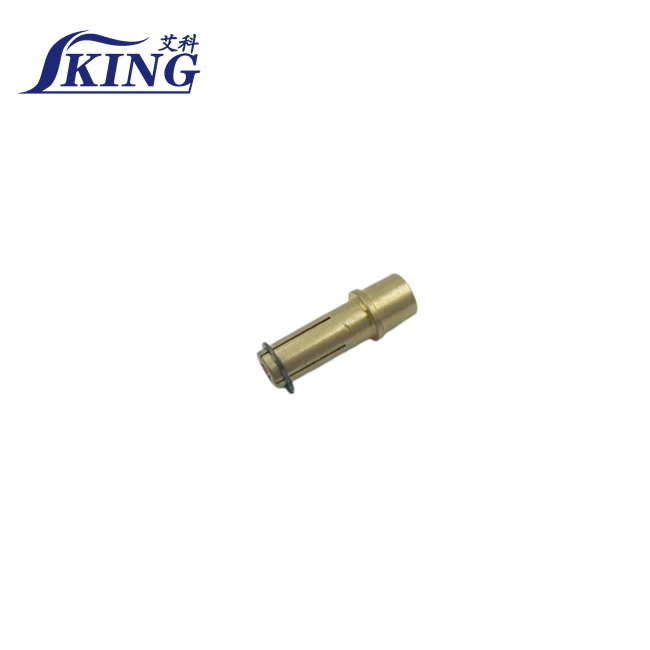

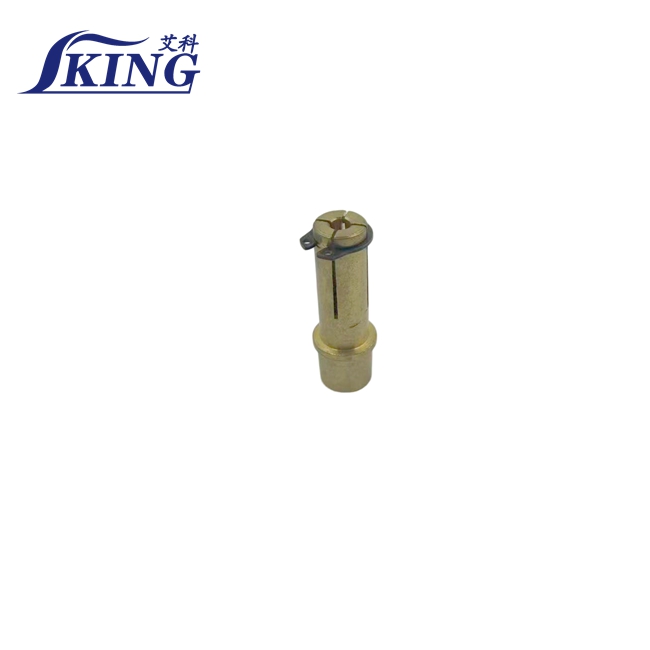

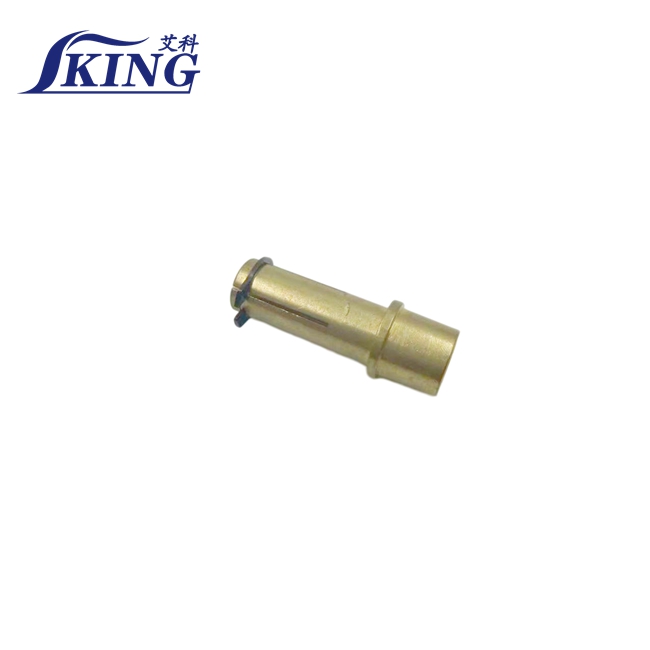

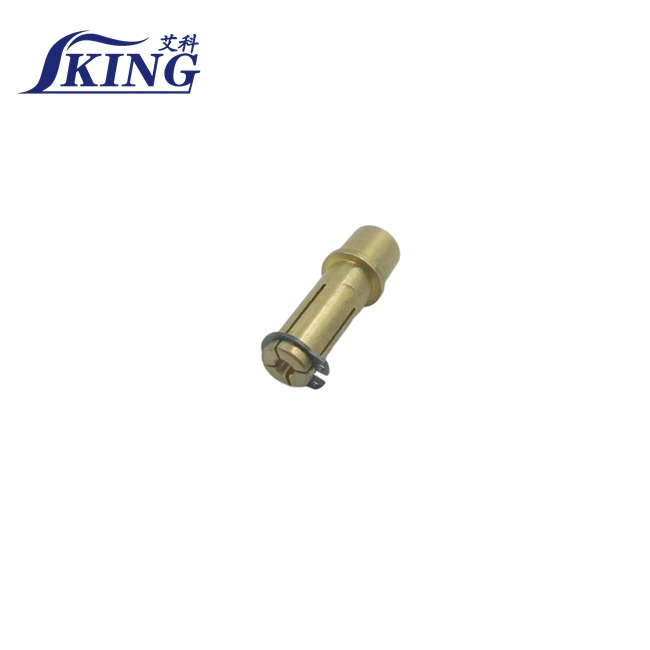

IKING Stud Welding Gun Stud Chuck With Circlip For Drawn‑Arc Stud Welding is a brass wearing consumable. Precision CNC‑machined from high‑conductivity brass, the split‑slot chuck with retaining ring clamps studs firmly and delivers stable current. Wear‑resistant and quick‑replaceable, it fits most mainstream drawn‑arc stud welding guns.
IKING Stud Welding Gun Stud Chuck With Circlip For Drawn‑Arc Stud Welding is a critical wearing brass consumable designed for drawn‑arc stud welding guns. Adopting split‑slot clamping structure matched with circlip retaining ring, this part is precision CNC‑machined from high‑conductivity brass. It firmly clamps welding studs and transmits stable high‑intensity welding current during continuous welding operations.
Low‑quality chucks are prone to inner‑hole wear, loose clamping and part displacement under long‑time heavy‑duty working conditions, which will trigger stud slipping, poor contact and welding spatter, resulting in plenty of defective products and extra production costs. Our stud chuck optimizes inner hole tolerance and circlip fitting dimension. The built‑in retaining ring effectively prevents part loosening and falling‑off. Featuring quick‑change structure, operators can finish disassembly and replacement rapidly, cutting equipment downtime for welding workshops and processing factories.
Made of high‑conductivity brass via precision CNC machining, this stud chuck with circlip has polished brass surface and special split‑slot clamping design with retaining ring. It supports multiple common stud diameters and accepts custom‑made sizes based on customer drawings or samples. Excellent high‑temperature resistance and wear‑resistant performance guarantee stable electric transmission in heavy‑load welding work. Daily production capacity reaches 30000 pieces to support large‑volume orders, and it is compatible with most mainstream drawn‑arc stud welding guns on the market
| Item | Details |
|---|---|
| Common Specifications | Fit multiple stud diameters, custom sizes available |
| Brand | IKING |
| Material | High‑conductivity brass |
| Surface Treatment | Polished finish |
| Features | Split‑slot clamping, with circlip retaining ring, wear‑resistant, high temperature resistant |
| Processing Technology | Precision CNC machining |
| Supply Capacity | 30000 pieces per day |
| Application | Drawn‑arc stud welding gun consumable, clamp studs and conduct welding current |
| Compatibility | Most mainstream drawn‑arc stud welding guns |
| Type | Wearing spare part for stud welding equipment |
This brass stud chuck with circlip cooperates with drawn‑arc stud welding guns, welding studs, ceramic ferrules and other matched consumables to implement reliable stud welding tasks.
1. Steel structure engineering: Stud fastening for steel beams, steel plates and building metal components.
2. Automotive industry: Sheet metal stud connection for vehicle chassis, body shells and mounting brackets.
3. Electrical cabinet manufacturing: Stud welding for distribution boxes, control cabinets and metal housings.
4. General machinery: Assembly welding for mechanical shells and supporting components.
5. Shipbuilding industry: On‑site stud welding for marine metal structural parts.
6. Metal processing factory: Mass‑production stud welding for various metal assembly projects.
China Aike Industrial Co., Ltd runs the IKING brand for welding fasteners and related consumables. We are a specialized manufacturer and exporter engaged in drawn‑arc stud welding equipment, welding studs and complete supporting spare consumables.
What you can get from us:
1. Strict quality management: Every batch will go through dimension inspection, clamping performance and compatibility sampling test before delivery.
2. Diversified solutions: Both standard in‑stock products and custom‑made service according to your drawings or physical samples are available.
3. Reliable supply chain: Sufficient production capacity supports bulk orders and relatively short lead‑time.
4. Professional technical service: Our team provides product selection suggestion and after‑sales support for your welding projects.
Our products serve global welding distributors, processing plants and engineering contractors covering steel construction, automobile and heavy machinery industries.
Q1: Will this stud chuck with circlip fit all drawn‑arc stud welding guns?
A: It matches most mainstream drawn‑arc stud welding guns. Please check thread and dimension parameters before placing orders.
Q2: When do I need to replace this circlip‑type stud chuck?
A: Replace it when you observe stud slipping, unstable current, obvious inner‑hole abrasion or circlip deformation. Service life depends on your daily welding workload.
Q3: Can you offer custom‑made stud chucks?
A: Yes, custom processing is supported if you provide drawings or real samples.
Q4: What other supporting welding consumables can you supply?
A: We provide complete matched products including welding studs, ceramic ferrules and various spare accessories for stud welding guns.
