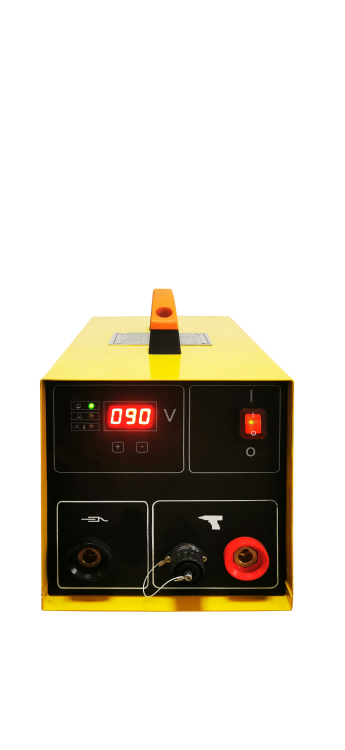

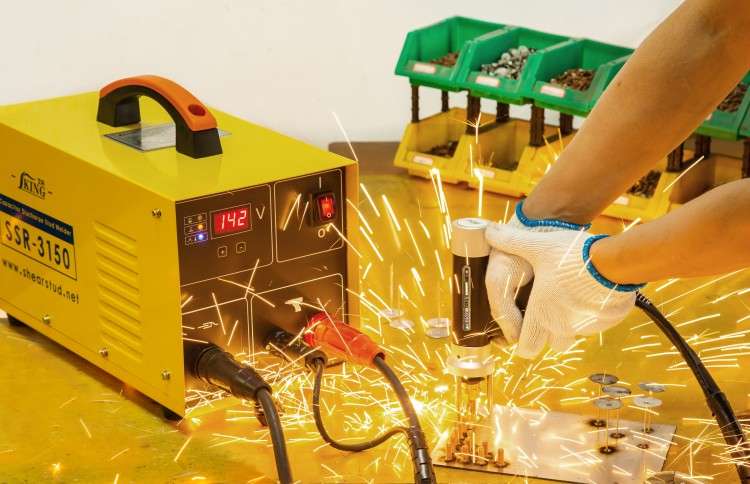

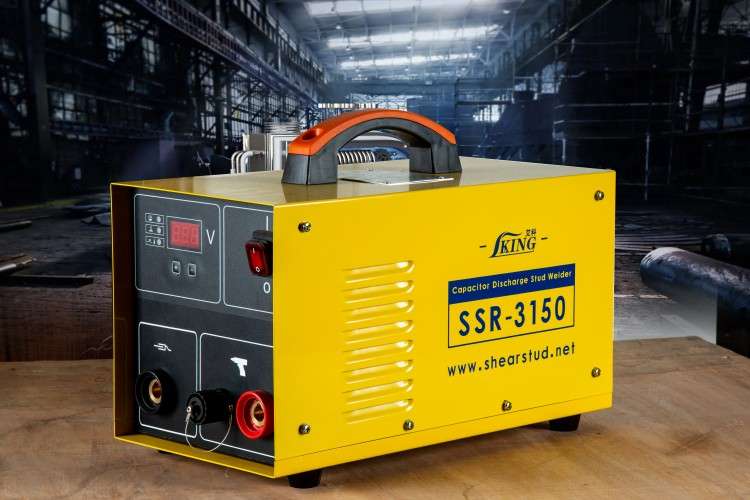

SSR3150 CD Stud Welder
American Market Stud Welder:
Size: 650mmX380mmX600mm
Weight: 52 lbs
Weld Range: 14 ga. through 1/4″
Duty Cycle: 30 studs per minute
Primary Power: 110 VAC or 120 VAC
Charge Voltage: 35-200 VDC
Europe And Other Market Stud Welder:
Size: 650mmX380mmX600mm
Weight: 24 kg
Weld Range: M3-M8
Duty Cycle: 30 studs per minute
Primary Power: 220 VAC -240 VAC
Charge Voltage: 35-200 VDC
At CD Stud Welder, we specialize in high-quality Capacitor Discharge (CD) Stud Welding solutions, providing cutting-edge welding technology for industries that demand precision, speed, and reliability. With years of expertise in the field, we are committed to delivering top-notch welding equipment, fasteners, and accessories that enhance productivity and ensure strong, lasting connections.
Our mission is to empower businesses with efficient, cost-effective, and high-performance stud welding systems that meet the highest industry standards.
|
Parameter |
SSR Series Capacitor Discharge Stud Welding Machine |
|||
|
Model |
|
|
|
|
|
Picture |
|
|
|
|
|
Stud Range |
Φ3-6mm |
Φ3-8mm |
Φ4-10mm |
|
|
Max. Output Energy |
1600J |
2500J |
3150J |
|
|
Capacitance |
66000μF |
99000μF |
108000μF |
|
|
Voltage Adjustment Range |
35-95V |
35-195V |
35-195V |
|
|
Charging Time |
0-3s |
|||
|
Weld Speed (Stud Qty/Stud Dia/Minute) |
30pcs/6mm/min |
30pcs/8mm/min |
30pcs/10mm/min |
|
|
35pcs/3mm/min |
35pcs/3mm/min |
35pcs/4mm/min |
||
|
Applied Patent |
Utility model patent CAPACITOR DISCHARGE STUD WELDING MACHINE |
|||
|
Input Voltage |
Single phase 110VAC~240VAC/50Hz or 60Hz (other voltages available) |
|||
|
Allowable Input Voltage Fluctuation Range |
±10% |
|||
|

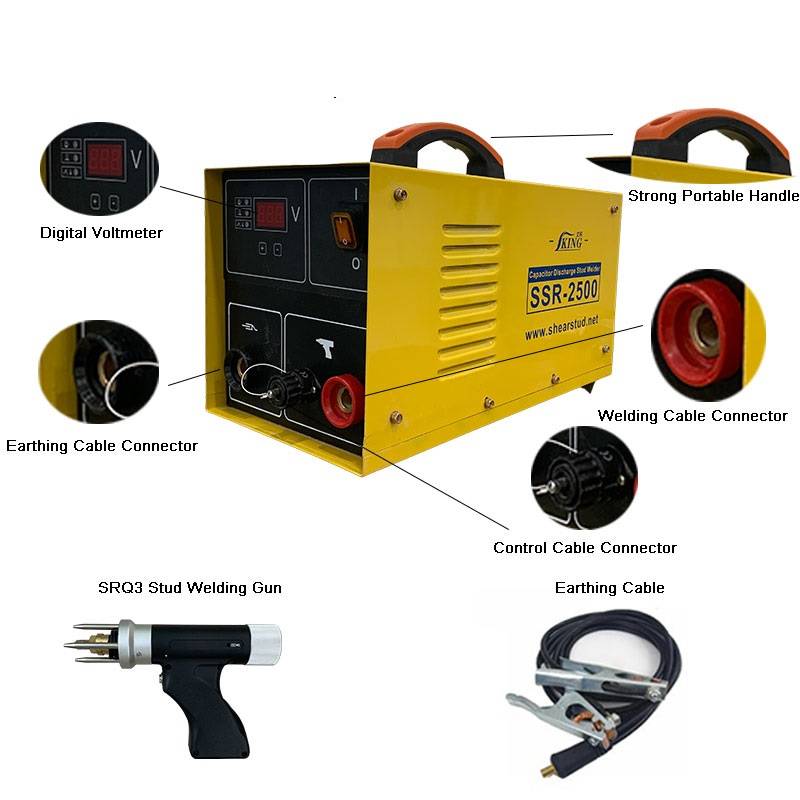

Standard Supply Scope |
1. Machine (1pc) |
2. Stud gun with cable (1pc) |
||
|
3. Earth clamp with earth lead (1pc) |
4. Chuck (4sets) |
|||
|
5. Special power cable (1pc) |
6. Enclosed documents (1set) |
|||
|
Specification of single-phase Power Cable (3 wires) |
3 wires (1.5mm2/pc) 3×1.5mm2 |
|||
|
Specification of Control Cable (2 wires) |
2 wires (0.5mm2/pc) 2×1mm2 |
|||
|
Max. Length of Extended Welding Cable |
30m |
|||
|
Max. Length of Extended Earth Lead |
10m |
|||
|
Protection Class |
IP23 |
|||
|
Cooling Mode |
Air Cooling |
|||
|
Case Material |
Steel + Spray Painting |
|||
|
Dimension (L×H×W) |
430mm×230mm×320mm |
|||
|
Handle |
Yes |
|||
|
Weight of Machine |
18kg |
19kg |
20kg |
|
|
Weight of Welding Gun |
0.7kg |
|||
|

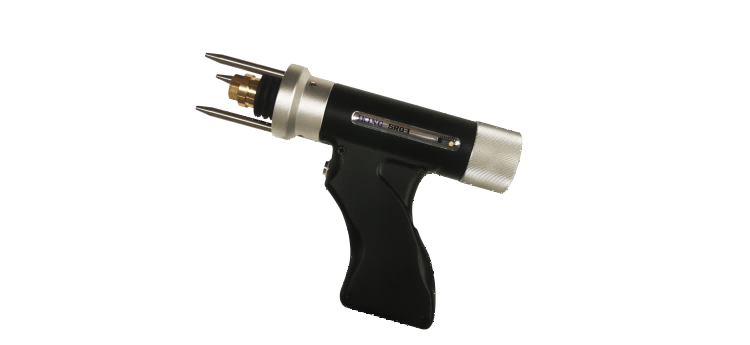

Standard Welding Gun |
SRQ3/SRQ5 |
|||
