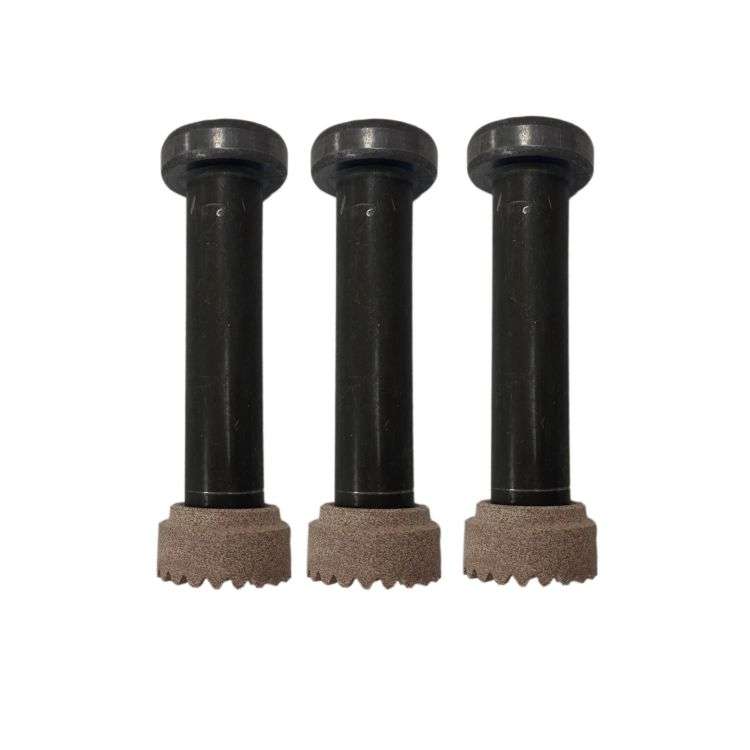

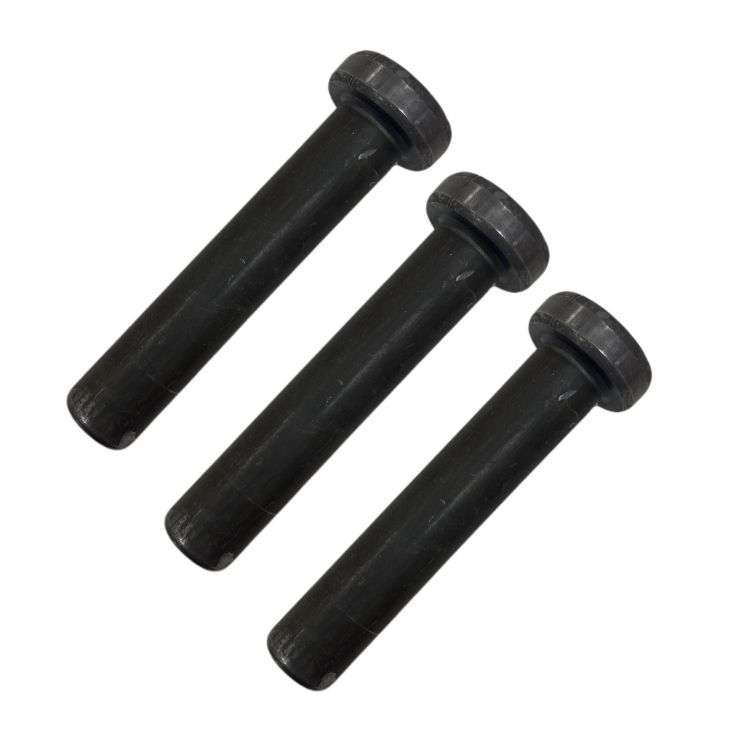

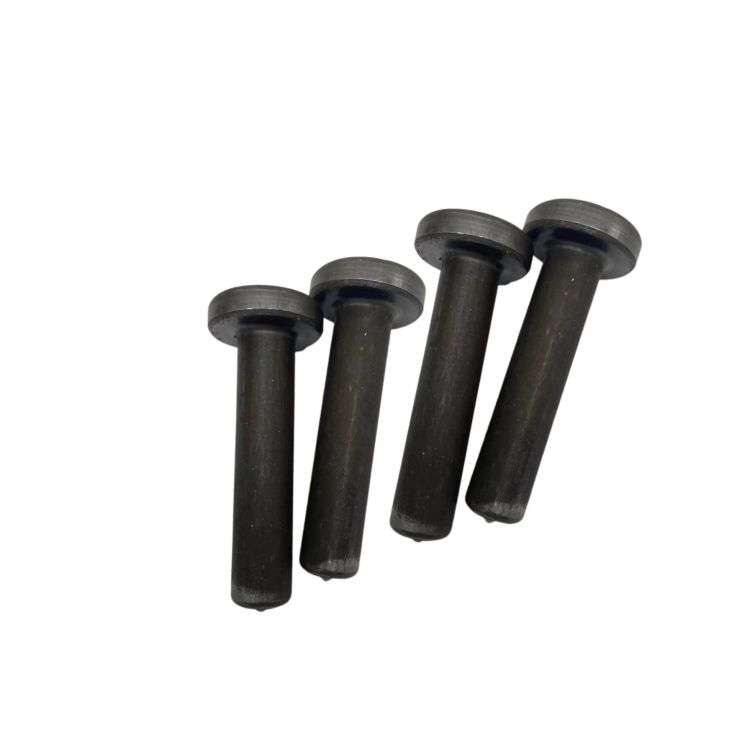

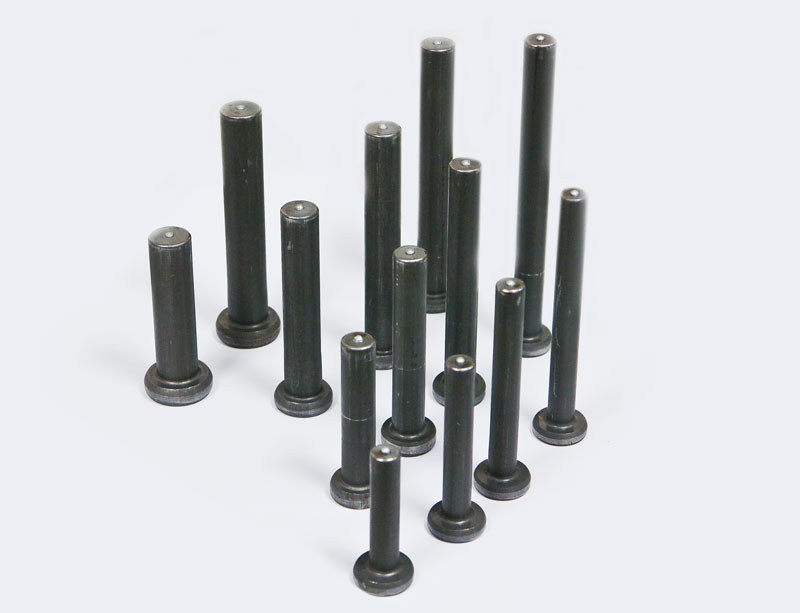

Headed Concrete Weld Studs

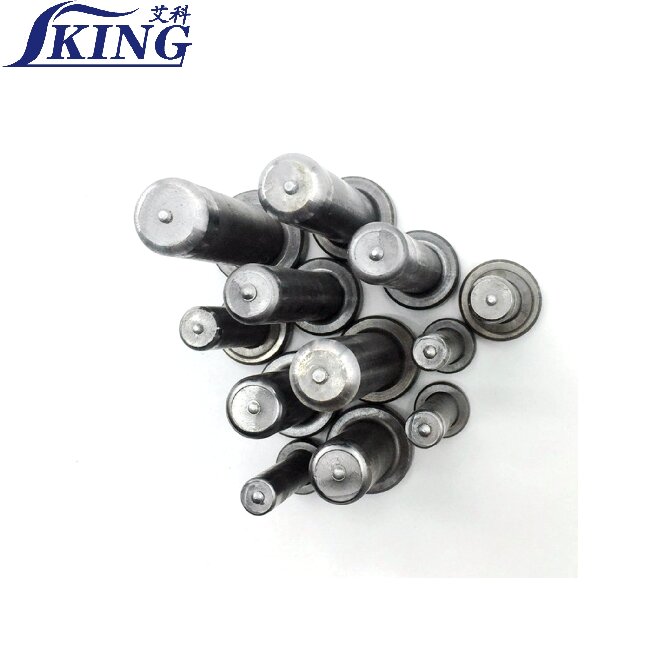

Headed concrete weld studs, also name shear studs, belongs to a kind of high-strength connection fasteners, used in various steel structure projects, in different connectors to play a rigid combination of connecting role. Designed to effectively tie the concrete to the steel beams and to resist shear loadings between the concrete slab and steel beam in composite construction.

MECHANICAL PROPERTIES: ALL HEADED CONCRETE WELD STUDS MATCH BELOW

TENSILE STRENGTH – 65,000 PSI MIN (450 MPa)

YIELD STRENGTH (.2% OFFSET) – 51,000 PSI MIN (350 MPa)

ELONGATION (% IN 2 IN.) 20% (% IN 5x DIA.) 15% MIN.

REDUCTION OF AREA 50% MIN

Advantage:

The most important thing is safety and cost-saving in composite structure design, which can reduce building height and save materials to maximize cost-effectiveness.

Longer beams can be used, so the room is larger and there are fewer obstacles, perfect for airports or large venues.

Make the steel structure stable and durable, and improve the shear load-bearing capacity of steel structure buildings.

Reliable and safe under both static and dynamic stress.

Application:

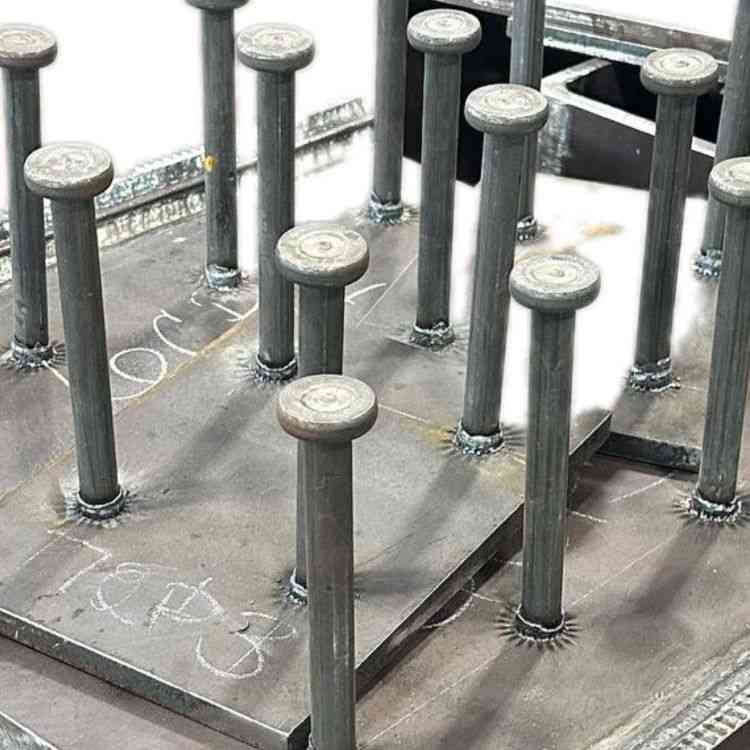

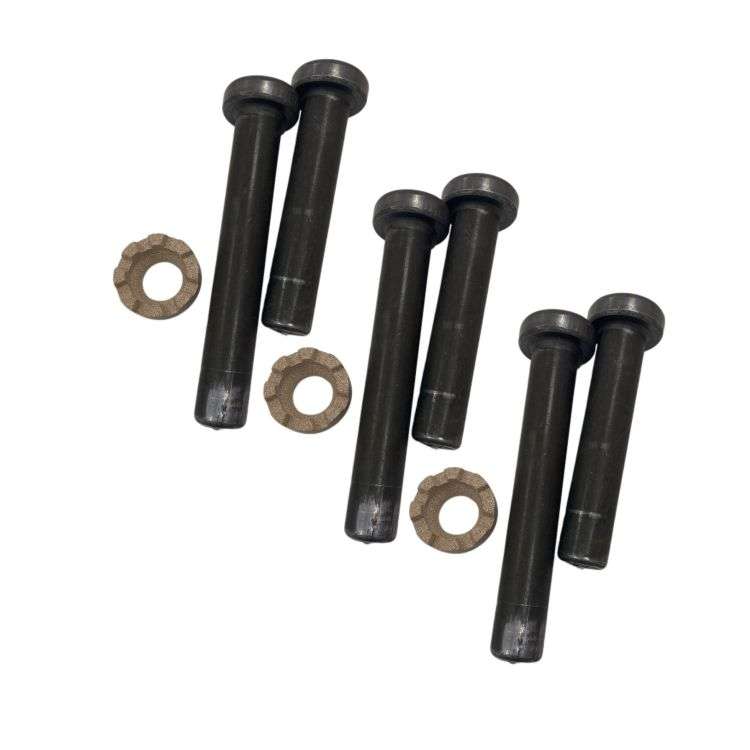

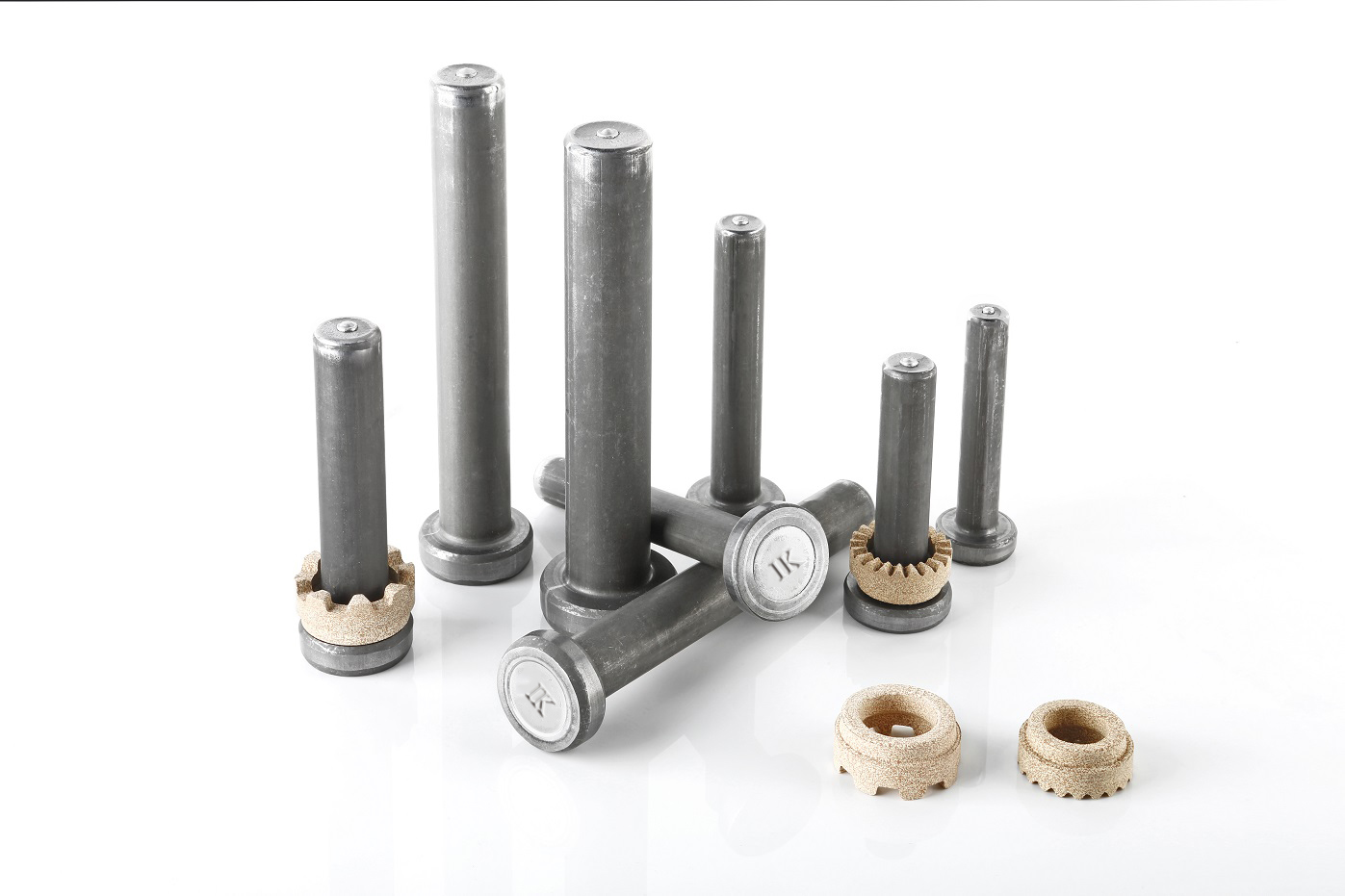

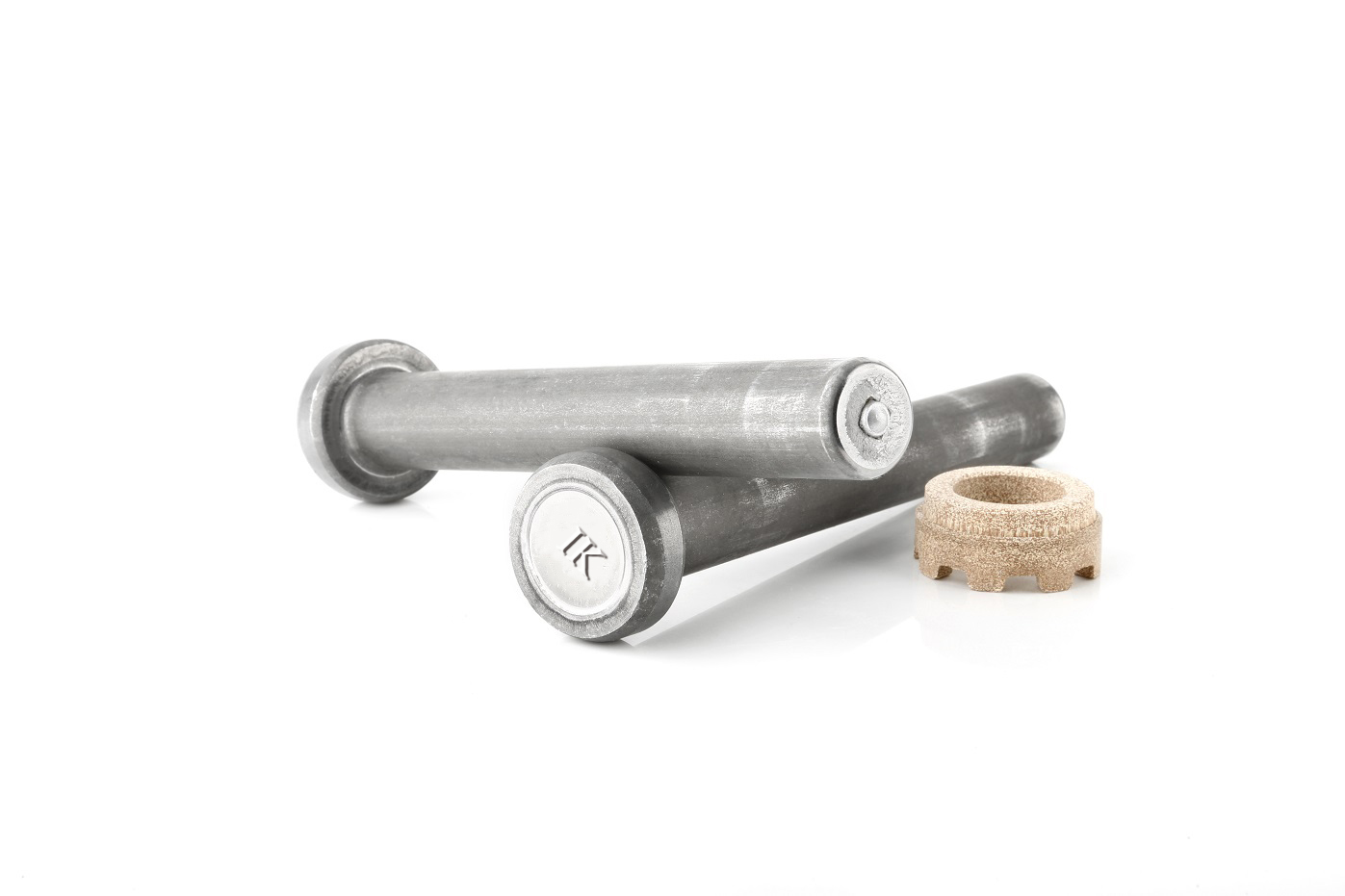

They can be used to weld flat surfaces, inside and outside corners. Welding in different locations will use different ceramic ferrules and different chuck welding accessories. We can also provide you with ceramic ferrules for welding inner corners and outer corners, ceramic ferrules for welding round pipes, and ceramic ferrules for welding floor decking. We can provide customized stud welding services.

If you need matching stud welder and stud welding accessories, or matching ceramic ferrule, pls contact me, we can supply you one stop solutions.
