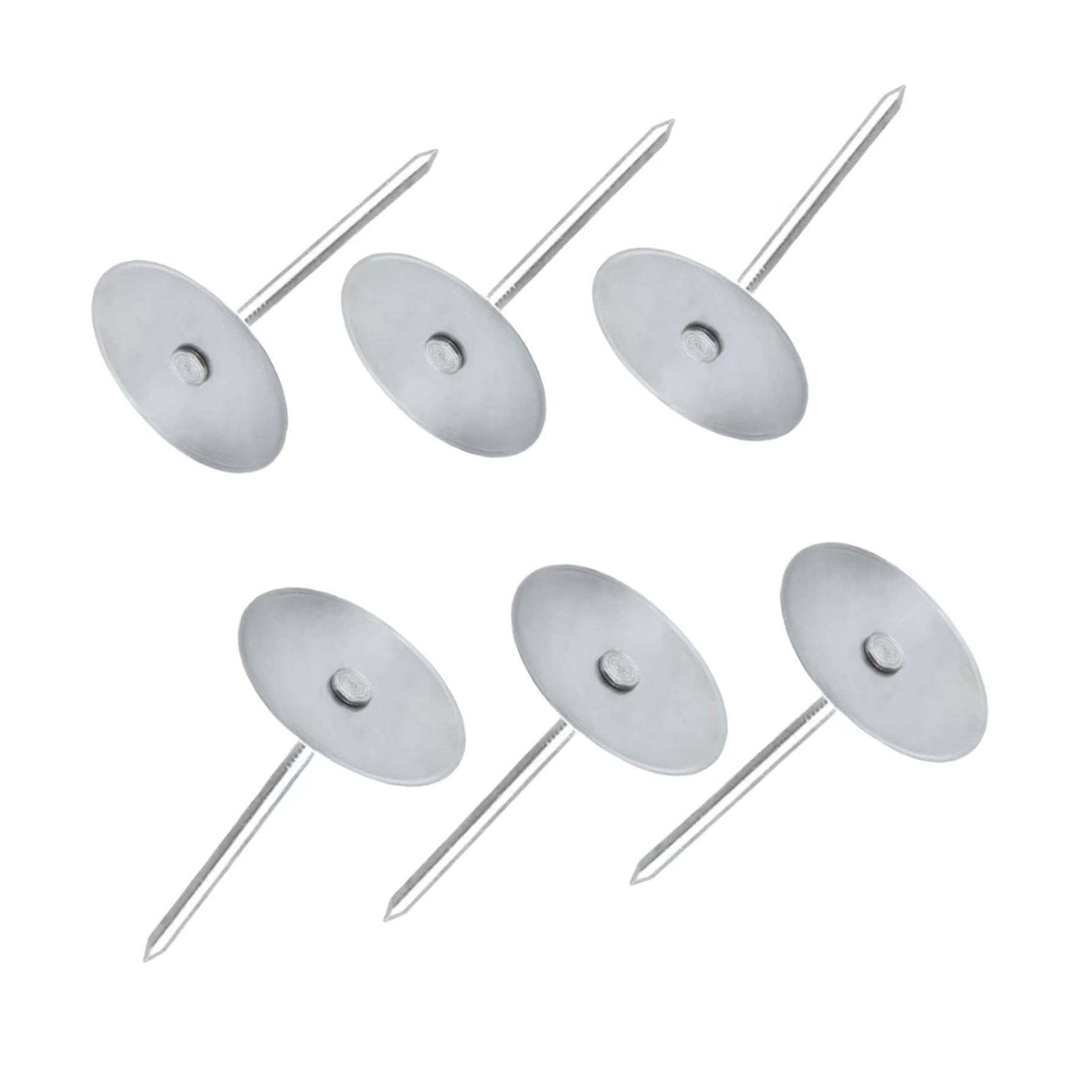

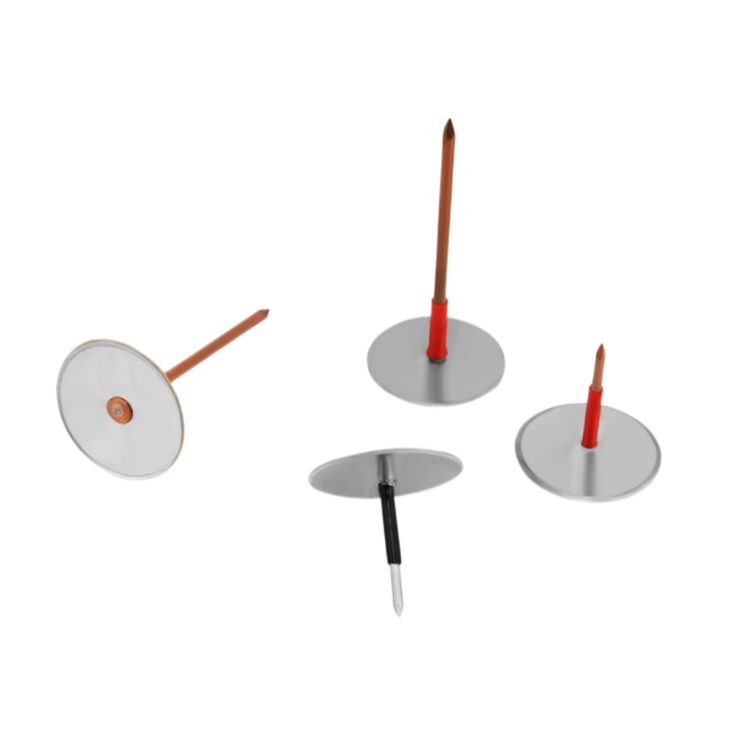

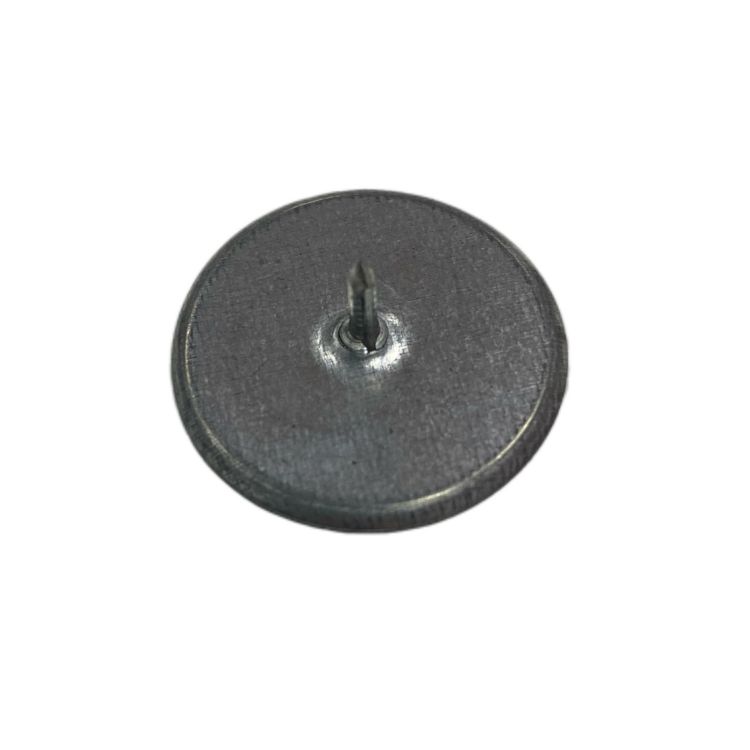

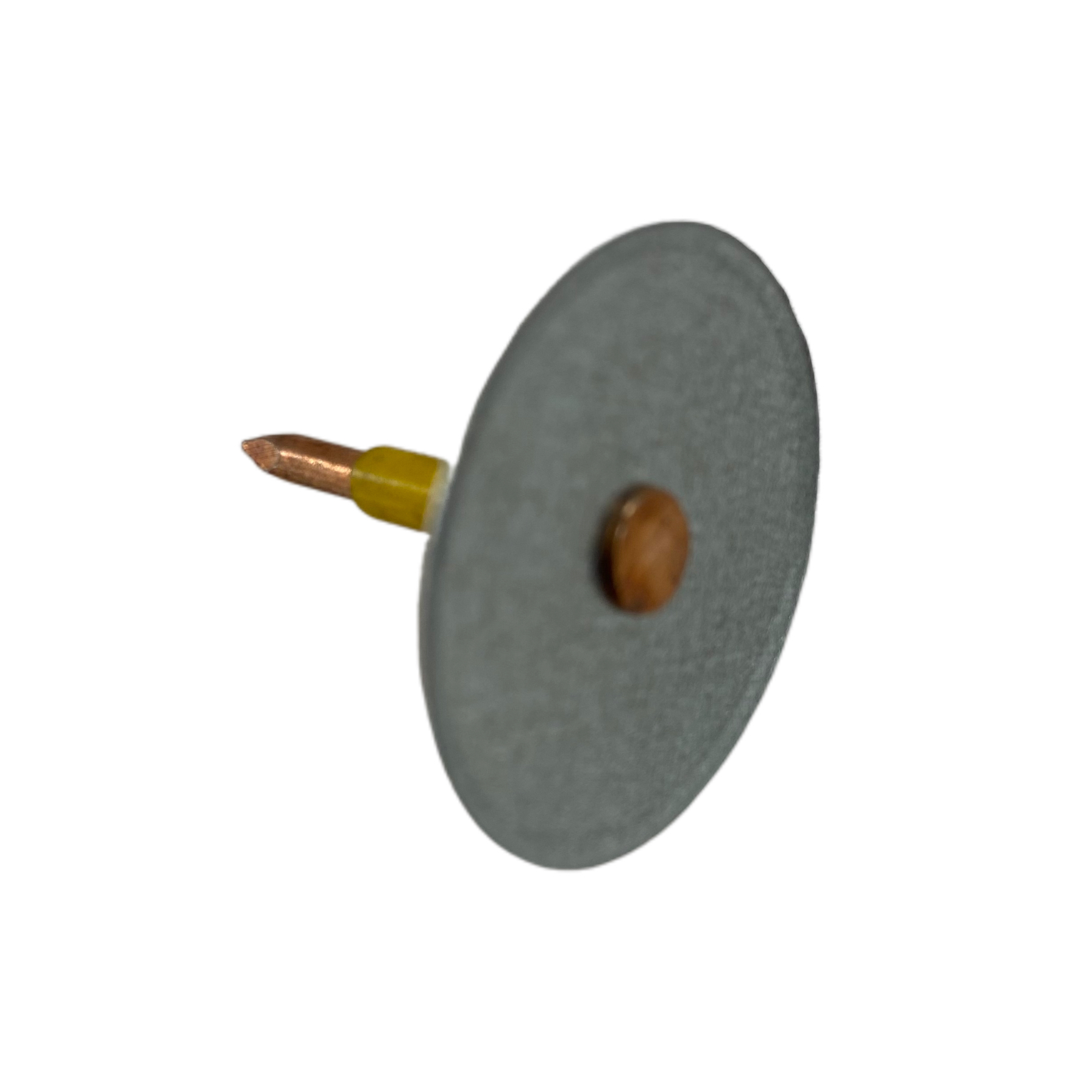

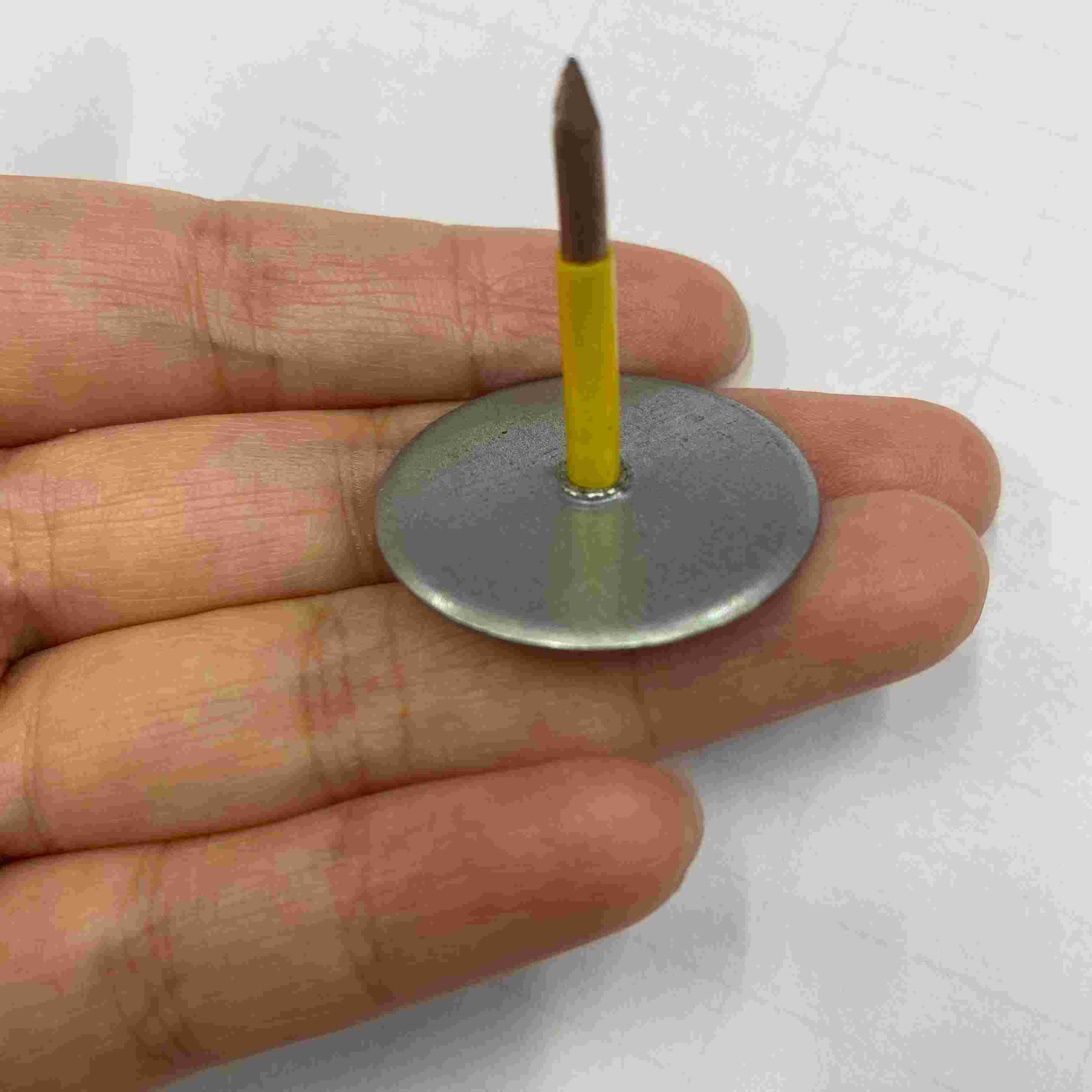

Insulation Pins-Cup Head Pins

Welding Cup Head Pins are also called air conditioning duct welding nails. They are made of galvanized sheets with a diameter of 30mm and a thickness of 0.6mm as the base plate, and then riveted by a nail making machine to form a new type of welded insulation nails. The main diameter is 2.7mm and the length varies. It subverts the traditional construction procedure-the construction method of first making insulation support and then hanging insulation materials. Instead, the insulation materials are installed and wrapped around the duct that needs to be insulated, and then the insulation nails are welded by the welding nail machine, thereby ensuring the convenience and smoothness of construction.

Duct Cup Head Pins are mostly used to fix glass wool, rubber and plastic insulation materials in air conditioning ventilation ducts. It is a metal welding nail. The welding nails are directly welded to the duct by stud welding. Since the material of air conditioning ducts is mostly galvanized sheet, the material of duct insulation nails is also galvanized to facilitate construction and welding.

So what should be paid attention to during the use of duct Cup Head Pins? Unlike glue nails, it does not require the cleanliness of the object, the construction temperature, and the construction environment. It only needs an insulation nail welding machine and a worker to adjust the welding machine itself accordingly, and then it can be constructed. Unlike traditional glue nails, this air duct insulation nail does not need to wait for 24 hours for the glue to fix. The welding of the nail can be completed in a few seconds, which is fast in construction and environmentally friendly and energy-saving.

Cup Head Pins are made of galvanized sheet and carbon steel wire through mechanical processing. It is a new product for fixing air conditioning engineering decorative insulation materials. Its advantages: simple, labor-saving, labor-saving, no rust, not easy to fall off, and no pollution.
